Fluorescent Batten
光管支架
適用於
Fluorescent Fitting
光管燈盤

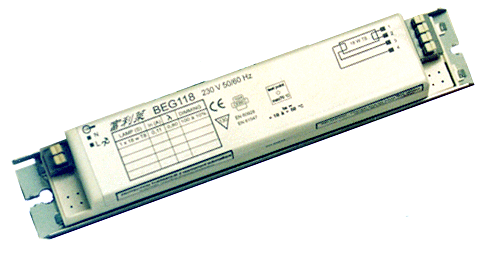

ELECTRONIC BALLASTS FOR DIMMER
可調光鎮流器(可調光光管牛)
BEG is a wide range of ballasts for use with STANDARD 26 Dia.
TUBES FLUORESCENT LAMPS.
BEG可調光鎮流器，適用於各類型標準光管(26mm直徑) ，如光管支架 及光管
燈盤等。
Input voltage 230 V, Power factor 0.80 at full flow, For Ta = 20oC, with good grounding and good lamp.
For more and detail information please contact :
Step Up Engineering Co. Tel : (852) 2351 7127 Fax : (852) 2329 4799
Tube Diam. 26 Type ofBEG Dimming range from (%) Frequency of operation Power consumption packing data Order requirement
1x18W BEG118 100 to 10% 22 to 29 Khz 0.11(A) Type 1 Min.10pcs. BEG118
2x18W BEG218 100 to 10% 21 to 30 Khz 0.22(A) Type 1 Min.10pcs. BEG218
3x18W BEG318 100 to 10% 28 to 33 Khz 0.33(A) Type 1 Min.20pcs. BEG318
4x18W BEG418 100 to 10% 17 to 25 Khz 0.42(A) Type 2 Min.20pcs. BEG418
1x36W BEG136 100 to 10% 21 to 28 Khz 0.21(A) Type 1 Min.10pcs. BEG136
2x36W BEG236 100 to 10% 16 to 24 Khz 0.40(A) Type 2 Min.10pcs. BEG236
1x58W BEG158 100 to 10% 18 to 27 Khz 0.31(A) Type 1 Min.10pcs. BEG158
2x58W BEG258 100 to 10% 17 to 26 Khz 0.55(A) Type 2 Min.10pcs. BEG258
請與我們聯絡 info@stepupeng.com
BEG SPECIFIFATION
